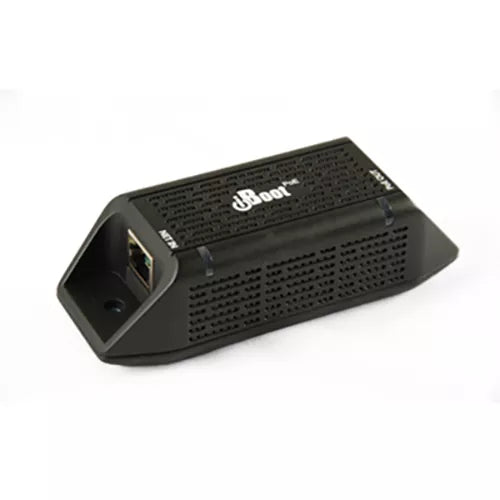

iBoot-PoE – Gigabit Ethernet Extender / Injector with Reboot

iBoot-PoE – Gigabit Ethernet Extender / Injector with Reboot

Regular price $225.00 USD
Regular price Sale price $225.00 USD
Sale Sold out

SKU: 1410047

In stock (can be backordered)

SKU: 1410048

In stock (can be backordered)

SKU: 1410050

In stock (can be backordered)

iBoot-PoE (Power Over Ethernet) brings all the benefits of Automatic and Cloud Controlled reboot to your PoE cameras, access points, security systems and all PoE plus devices. This Gigabit Ethernet PoE Extender supports up to 25.5 Watts of switching and automatic configuration. Add the Power Supply and iBoot-PoE becomes a full PoE Midspan Injector, with reboot!

View full details

Major Project Expertise

If you manage a network with hundreds or thousands of sites, every second of downtime costs you serious amounts of dollars. Our solutions are optimized to help you deploy and manage large scale installations around the world and keep them running with minimal downtime.

  • PoE Extender/Injector
  • Simple Web Control
  • Free Cloud Service
  • iBoot Automatic Reboot

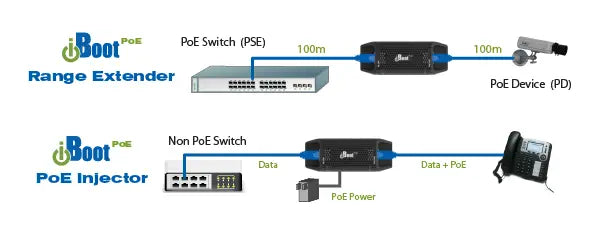

iBoot-PoE is an Active PoE Extender. Complies with IEEE 802.af and 802.3at to give you up to 25.5 Watts of power for your devices. Designed to protect non-PoE devices that may be inadvertently connected.

With the optional power supply, iBoot-PoE becomes an injector making it easy to add PoE devices onto you and have automatic self-healing and managed reboot built right in.

iBoot-G2 Status Page

Clean web page design makes it easy to see the status and control power to any outlet. History log shows the last 5 events.

Adaptive mobile pages make it easy to make that quick reboot from you smartphone while on the go.


Single Sign-On for iBoots Worldwide

iBoot Cloud Service (iBCS) allows customers with iBoot to access and control multiple iBoots in multiple locations from a single portal with a single sign-on.

iBCS will not only make using iBoots easier, by consolidating all units into one sign-on and interface, it will also enhance the number of situations where iBoot can be deployed.

  • Customers with Dynamic IP addressing to always be able to access their iBoot from any location.
  • Service providers manage multiple customer accounts with diverse security configurations
  • Customers that do not allow in-bound connections to access their iBoots.

Read More about iBoot Cloud Service

Download the setup guide

Visit the iBoot Cloud Service Site

The fastest way to get back on-line

iBoot automatically monitors and protects your network. AutoPing continuously tests your connectivity to the internet or to any device on your network. When the network is down, or the device stops functioning, iBoot reboots the failed system to get you back on-line fast.

For servers, the Heartbeat service generates a “I’M OK” message from your server to iBoot. When that message dissapears, iBoot will reboot the server, using Graceful Shutdown if possible prior to using power off to reboot the crashed system.


With iBoot’s real time scheduler, you can use regular reboots to insure a fresh start each day. Power Up and Down equipment as needed to minimze energy consumption, heat and extend product life. Turn off equipment automatically when not needed for security and access control.

Don’t get in the car just to push that big red button. iBoot can automatically restart crashed systems or put the power of remote reboot in your hands, wherever you are.

How Much Can You Save?

Discover your true Cost of Downtime and how fast your ROI on iBoot will be.

Learn More about iBoot-PoE – Gigabit Ethernet Extender / Injector with Reboot

Features of iBoot-PoE – Gigabit Ethernet Extender / Injector with Reboot

Web Browser Power Control

Clean Web page design for immediate status and power control. Auto detects mobile browsers. No special software required.

Automatic System Restoral

AutoPing and Traffic Monitor detect network or equipment problems and takes immediate action to restore your network or device. Real time scheduling to have a fresh reboot each morning or minimize power waste at night.

Cloud Control

Manage all your iBoots from a single sign-on. Control power worldwide from any web browser, anytime anywhere.

Active PoE Extender

Compliant with IEEE 802.3af and 802.3at standards. Protects non PoE products from accidental damage.

PoE Injector

With the Add-on Power Supply, iBoot-PoE becomes a complete midspan injector with reboot.

Automatic Configuration

Completely self configured in standard DHCP environments. Just install and your network is protected.

Dual Password Protected

Separate user and administrator passwords. Deploy iBoots throughout your organization.

IP Addressed, 10/100/1000 Ethernet

Use on any Ethernet IP network. Public or private. Supports DHCP and alternate ports for Web Access.

Direct TCP and Software Control

Control iBoot-PoE directly from your software application for the highest degree of power control integration. Easy integration with network monitoring from IPSentry, What’sUP Gold, SNMP Managers etc.

Screenshots of iBoot-PoE – Gigabit Ethernet Extender / Injector with Reboot

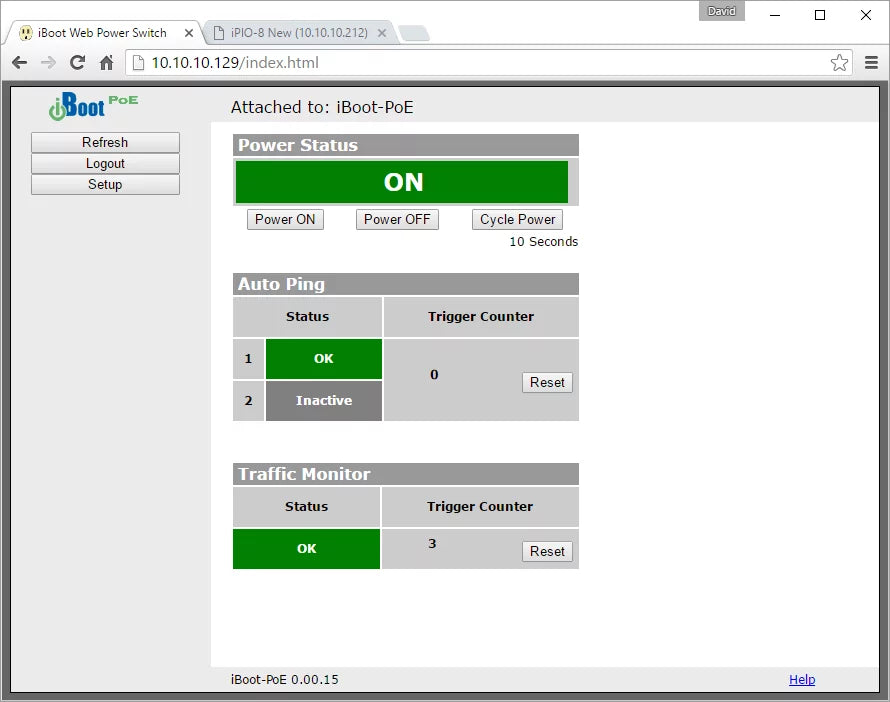

iBoot-PoE Status

Clean web page design makes it easy to see the status and control power to any outlet. View the Status of the Automation, both AutoPing and TrafficMonitor.

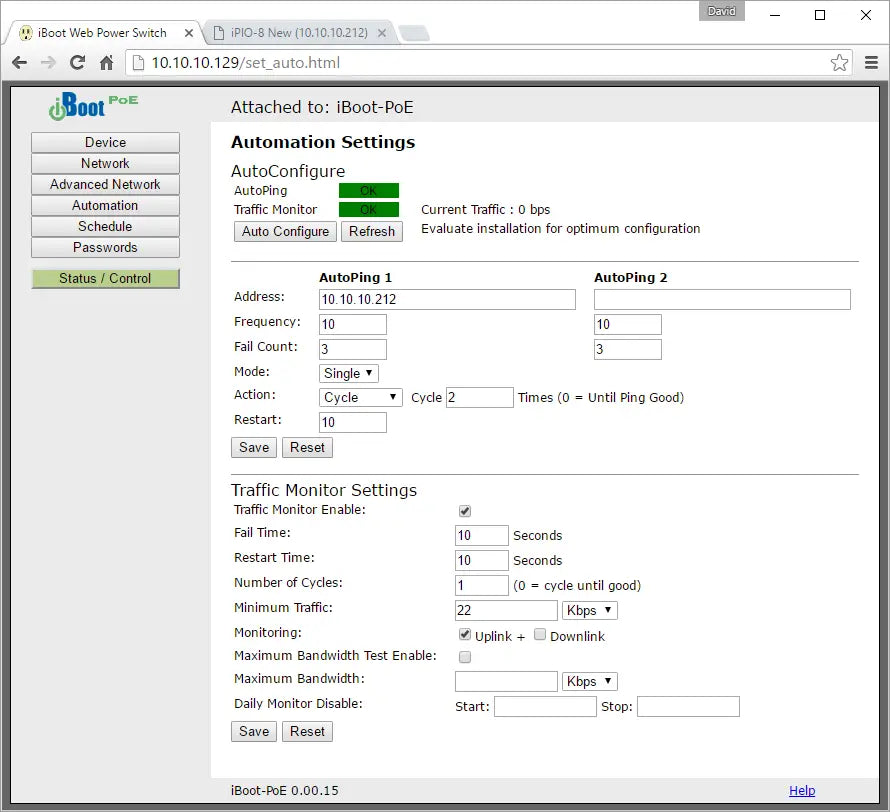

iBoot-PoE Automation Setup

iBoot-PoE can self configure the automatic reboot. You can always manage or tweak the settings here.


Scheduling Setup

All the setup is handled with easy web forms. Set multiple schedules to have a clean reboot every morning, or shut down at night to reduce power waste.

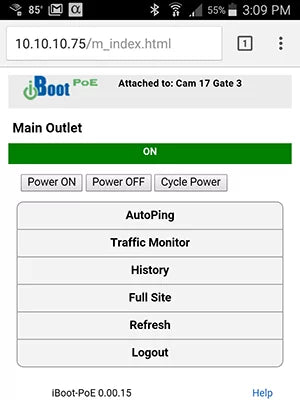

Mobile Pages

Take power control with you wherever you travel. iBoot Automatically detects mobile browsers and provides reduced clutter for easy one thumb access.

Specifications of iBoot-PoE – Gigabit Ethernet Extender / Injector with Reboot

PoE Standards

Models iBoot-PoE Active Extender
iBoot-PoE-I Active Injector
PoE, PoE+ IEEE 802.3af 802.3at, Up to 25.5W
iBoot-PoE-P Passive Extender
9 – 72 VDC and 802.3af
Mode A, Mode B and 4PPoe Wiring


10/100/1000 Full or Half Duplex Auto sensing Uplink/Downlink Cat 5 Cable Included 6’/2m long


IP Addressable. DHCP or Static
HTTP Web Server built-in, Port Assignable
Telnet Server built-in, Port Assignable
DxP Messaging Protocol,
Port Assignable Auto-Ping TCP Protocol
Dataprobe Cloud Service Compatible


Dual Password Protected, User and Admin

LED Indicators

LEDs on Network Jacks indicate network status
NET IN: Power to the iBootPoE
PoE OUT: Power supplied to PD


4.90 x 1.85 x 1.34 in. (124 x 47 x 34 mm) Operating Temperature 0 to 50 Deg. C




RoHS/WEEE FCC Part 15 Class B CE
