iPIO: Ethernet I/O

iPIO: Ethernet I/O

Regular price $465.00 USD
Regular price Sale price $465.00 USD
Sale Sold out
Model
View full details

Product description

SKU: 1340070

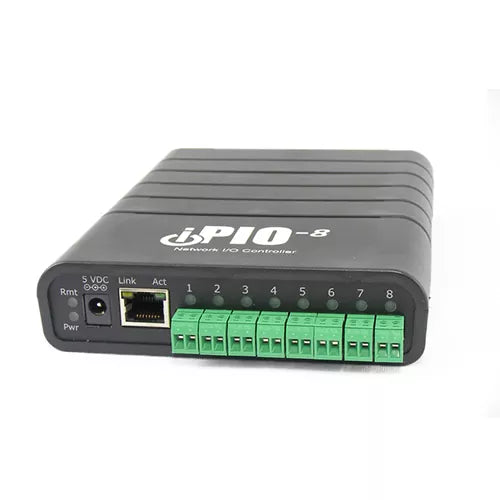

8 Inputs and 8 Outputs. Ships with 120/240VAC power supply.

In stock (can be backordered)

SKU: 1340080

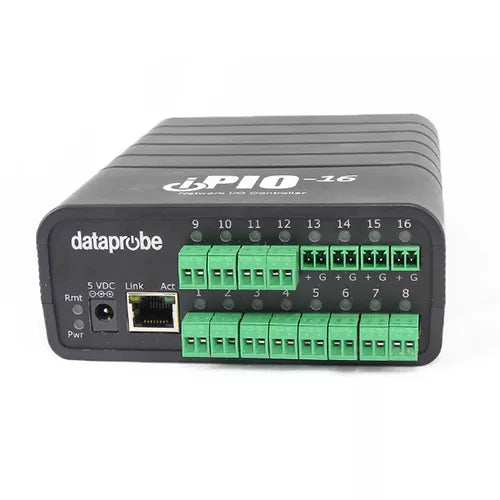

16 Inputs and 16 Outputs. Ships with 120/240VAC Power Supply.

In stock (can be backordered)

Dataprobe’s iPIO offers web managed inputs and outputs that are both Telnet and SNMP manageable. The iPIO brings network management to real world events via remote response to physical events. Dataprobe monitoring & control solutions are ideal for:

  • Environmental Monitoring
  • Manufacturing Control and Test Systems
  • Factory Automation
  • Process Control
  • Security and Gate Control
  • Ethernet I/O Transport
  • Building Automation Systems
  • Laboratory Automation

You can check other products here

Major Project Expertise

If you manage a network with hundreds or thousands of sites, every second of downtime costs you serious amounts of dollars. Our solutions are optimized to help you deploy and manage large scale installations around the world and keep them running with minimal downtime.

TOP FEATURES
  • iPIO - Bidirectional Event Transport
  • iPIO - Network Monitor and Control
  • iPIO - Multi Site Event Reporting
  • iPIO - Event Consolidation

Bi-Directional GPIO

iPIO gives you the ability to transport digital I/O across Ethernet networks with IP protocols. Multiple iPIO devices can communicate amongst themselves to transport I/O information across your network, and links are bidirectional, so events in either location are reflected at any other site. Any changes in status appear at the other end of the network as relay outputs. 2 Units are required for End-to-End transport. See Discount on Paired Units.

GPIO Monitor

Get real time status updates on you web browser and click to control any relay. Monitor and control digital I/O worldwide using an SNMP V2 compliant manager. iPIO also sends email when events occur.

Multi-Site event distribution

One digital input can trigger relay controls at multiple remote locations. With iPIO, one alarm can trigger events throughout your network, making it easy to respond to physical events and manage your systems remotely:

  • Climate Control
  • Industrial Control
  • Security Alerts
  • Firehouse Doors
  • Irrigation Systems

Multi site event consolidation

Events from multiple locations can also be consolidated to a central alarm point. Digital inputs from any iPIO unit can be mapped to the relay output of any other, giving you maximum control:

  • Environmental Alarm Summaries
  • Storm Warning Systems
  • Security Alerts
  • Pump Controls

Don’t get in the car just to push that big red button. iBoot can automatically restart crashed systems or put the power of remote reboot in your hands, wherever you are.

How Much Can You Save?

Discover your true Cost of Downtime and how fast your ROI on iBoot will be.

Learn More about iPIO: Ethernet I/O

Features of iPIO: Ethernet I/O

Web Controlled Relays

One click relay control from clear web browser interface.
Set name, qualifying time and color scheme for each relay.

Real Time Status Monitoring

Continuous updates of input status. No need for browser refresh. Set name and color scheme for each relay

GPIO Transportation Over the Network

Send contact closure information across the network to one or multiple places. Get the information you need, where you need it.


Contact Closure via IP

Manage with SNMP or create your own custom programming to operate relays over the network.


Link Supervision with Alarm

Continuously monitors data link between each device and alerts you when the network fails.


Email Notification

Receive updates on all input and /or output activity.

SNMP Management

SNMP V2c compliant MIB. Integrate into you network management scheme.

Wet or Dry Input Monitoring

Configurable for +VDC inputs 3-30 volts.

Multi-Site Distribution

Get status information from one point to multiple locations simultaneously. Ideal for load-shedding and security alert notifications.


Alarm Consolidation

Summarize multiple alarm points to one location.

Screenshots of iPIO: Ethernet I/O

Enlarge

Status and Control Screen

This main screen provides real-time updates of all inputs and outputs. Click on any relay to change.

Enlarge

Input Setup Screen

Control names of the input as well as open and closed names, and status colors for text and background.

Enlarge

Remote Site Setup Screen

Configure each remote for status transmission and immediate action.

Specifications of iPIO: Ethernet I/O

Physical

iPIO-2Height 1.74" Width 5.63" Depth 3.03"
iPIO-8Height 1.25" Width 5.00" Depth 7.50"
iPIO-16Height 2.00" Width 5.00" Depth 7.50"

Environmental

Temperature 0 - 50 Deg C Operating

Humidity 90 Pct Non Condensing

Power

iPIO-8
iPIO-16
Power Supply, included
Input: 105 - 240 VAC 50/60Hz
Output: +5VDC.iPIO-8 : 6 Watts
iPIO-16 : 10 Watts
iPIO-2Power Supply, included
Input: 105 - 240 VAC 50/60Hz
Output: +5VDC. 4 Watts.Power over Ethernet (PoE) 4.0 Watts

Inputs

Two screw terminals per input.  Dry Contact Closure or

settable for +3VDC to +30 VDC input, Grounds Common

iPIO-22 Inputs
iPIO-88 Inputs
iPIO-1616 Inputs

Relay Outputs

Current Maximums 0.5A @ 120VAC or 1A @ 24VDC

Switching Power 60VA Max 50uW Min

Switching Voltage 120VAC or 60VDC Max 1VDC Min

Switching Current 1A Max 1mA Min

Resistance 100 milliohms (initial value)

Operations 5 Million, mechanical. 100K at maximum load

LED Indictors

One LED Indicator for Each Input, Configurable for On or Off state

One LED Indicator for each Relay Output. Configurable for ON or Off state

Network Link (Link) and Activity (Act).

Remote Unit Link Status (Rmt).

Power (Pwr)

Switch

Reset. Hardware Reset


Inputs

Digital Inputs

Dry relay/switch closures or

+/-3VDC to +/-30 VDC

Grounds common

Network

HTTP Web Server

DHCP Assigned or Static IP Address

Email to SMTP Server

SNMP V2 Manageable.

Inter Device Communications via DxP Protocol

128 bit AES Encryption optional

Selectable Port assignments for Web, and DxP Protocol.
