iBoot Expansion Unit

iBoot Web Power Switch

iBoot Expansion Unit

iBoot Expansion Unit

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out

In stock (can be backordered)

SKU: 1410038

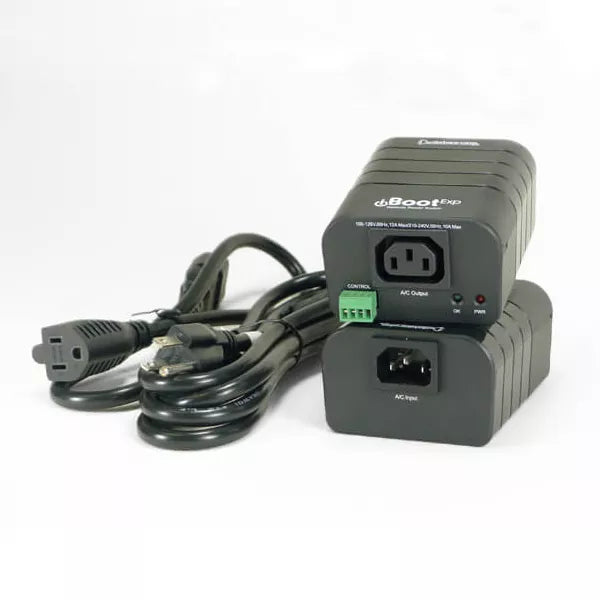

iBoot-EXP is a remote controlled power On / Off switch. It is designed to be controlled by Dataprobe’s iBoot-G2+ or iBoot-G2S Web Enabled Power Switches, as an expansion unit. iBoot-EXP handles worldwide power from 105-240VAC. It is capable of switching up to 12Amps at 120VAC and 10 Amps at 220 VAC. Two iBoot-EXP units can be connected and independently controlled by the iBoot-G2+ or iBoot-G2S.

View full details

Major Project Expertise

If you manage a network with hundreds or thousands of sites, every second of downtime costs you serious amounts of dollars. Our solutions are optimized to help you deploy and manage large scale installations around the world and keep them running with minimal downtime.

TOP FEATURES
  • Control up to Three Outlets!

Iboot cloud service

iBoot-EXP is a remote controlled power On / Off switch. It is designed to be controlled by Dataprobe’s iBoot-G2+ or iBoot-G2S Web Enabled Power Switches, as an expansion unit. iBoot-EXP handles worldwide power from 105-240VAC. It is capable of switching up to 12Amps at 120VAC and 10 Amps at 220 VAC. Two iBoot-EXP units can be connected and independently controlled by the iBoot-G2+ or iBoot-G2S.

Don’t get in the car just to push that big red button. iBoot can automatically restart crashed systems or put the power of remote reboot in your hands, wherever you are.

How Much Can You Save?

Discover your true Cost of Downtime and how fast your ROI on iBoot will be.

Learn More about iBoot Expansion Unit

Features of iBoot Expansion Unit

Screenshots of iBoot Expansion Unit

Specifications of iBoot Expansion Unit

Power

105 – 240 VAC Auto Ranging

Power Switching

12 Amps at 105-125 VAC, 10 Amps at 210-240 VAC

Power Connectors

Power Inlet: IEC 320 C13 Plug. Line cord for North America Included. 16AWGX3C x 6’/2m Power Out: IEC 320 C14 Receptacle. Extension Cord for N. America Included. 16AWGX3C x 2’/60cm

External I/O

Two Inputs, Two Outputs, Screw Terminal Connections:

DesignatorNameDescription
V+Power INThis is +12 VDC power from the iBoot-G2+ or iBoot-G2S Maximum current 100 mA
IInputControl Input from iBoot-G2+ or iBoot-G2S
GGroundSignal Ground for Input and Output
OOutputStatus Output to iBoot-G2+ or iBoot-G2S

Physical

H x W x D: 2.0″ x 3.2″ x 4.2″ (60mm x 82mm x 107mm) Operating Temperature 0 to 50 Deg. C

Reliability

MTBF 540,000 Hours Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load

Compliance

RoHS/WEEE FCC Part 15 Class B. UL/cUL UL60950 Listed I.T.E File No. E225914 CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC
