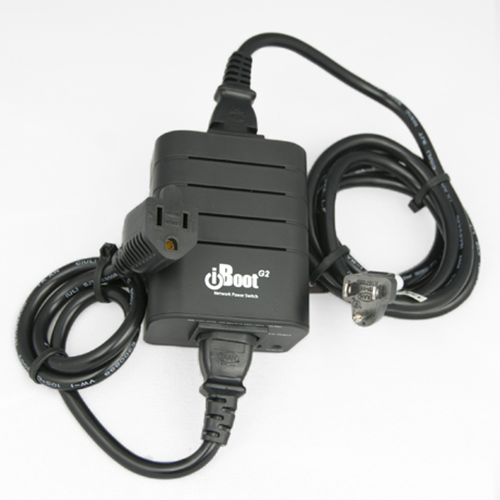

iBoot-G2 Web Power Switch

iBoot Web Power Switch

iBoot-G2 Web Power Switch

iBoot-G2 Web Power Switch

Regular price $225.00 USD
Regular price Sale price $225.00 USD
Sale Sold out

In stock (can be backordered)

The Easiest way to Minimize Downtime

SKU: 1410034

Model iBoot-G2 has all the basic features you need to quickly get your crashed system back on-line without the need for an expensive site visit. iBoot will save you time and money by reducing costly downtime. Just point your browser to the iBoot, login and you are one click away from bringing that failed system back to life. iBoot will even detect failed systems and take immediate action.

View full details

Major Project Expertise

If you manage a network with hundreds or thousands of sites, every second of downtime costs you serious amounts of dollars. Our solutions are optimized to help you deploy and manage large scale installations around the world and keep them running with minimal downtime.

TOP FEATURES
  • Simple Web Control
  • Free Cloud Services
  • iBoot Automatic Reboot
  • UL Listed for Safety

Web Power Switch
Point – Click – Reboot

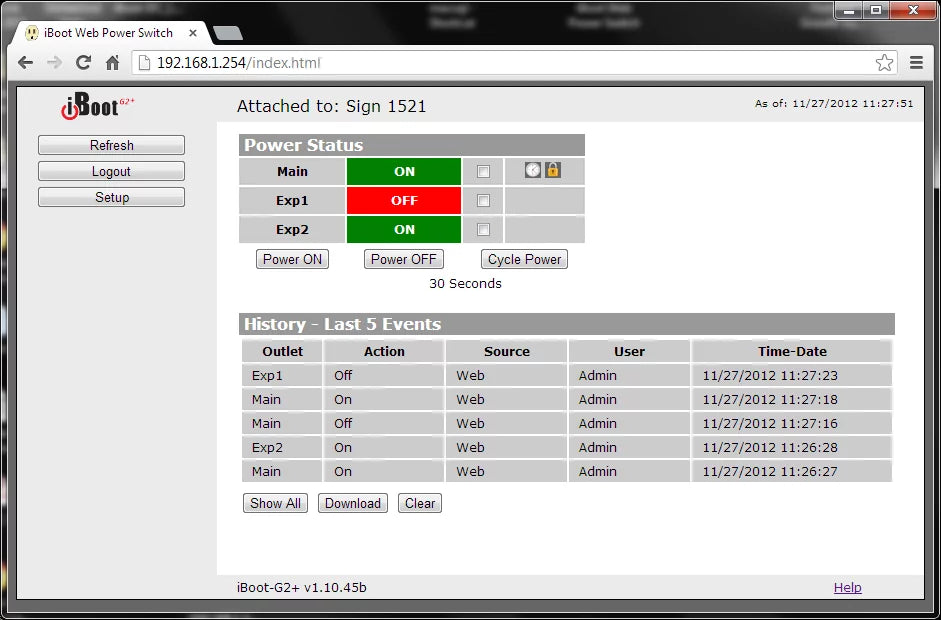

iBoot-G2 Status Page

Clean web page design makes it easy to see the status and control power to any outlet. History log shows the last 5 events.

Adaptive mobile pages make it easy to make that quick reboot from you smartphone while on the go.

Single Sign-On for iBoots Worldwide

iBoot Cloud Service (iBCS) allows customers with iBoot to access and control multiple iBoots in multiple locations from a single portal with a single sign-on.

iBCS will not only make using iBoots easier, by consolidating all units into one sign-on and interface, it will also enhance the number of situations where iBoot can be deployed.

  • Customers with Dynamic IP addressing to always be able to access their iBoot from any location.
  • Service providers manage multiple customer accounts with diverse security configurations
  • Customers that do not allow in-bound connections to access their iBoots.

Read More about iBoot Cloud Service

Download the setup guide

Visit the iBoot Cloud Service Site

The fastest way to get back on-line

AutoPing
iBoot automatically monitors and protects your network. AutoPing continuously tests your connectivity to the internet or to any device on your network. When the network is down, or the device stops functioning, iBoot reboots the failed system to get you back on-line fast.

For servers, the Heartbeat service generates a “I’M OK” message from your server to iBoot. When that message dissapears, iBoot will reboot the server, using Graceful Shutdown if possible prior to using power off to reboot the crashed system.

Scheduling

With iBoot’s real time scheduler, you can use regular reboots to insure a fresh start each day. Power Up and Down equipment as needed to minimze energy consumption, heat and extend product life. Turn off equipment automatically when not needed for security and access control.

Protect Your Users and Comply with OSHA

Dataprobe Remote Reboot products are UL Listed. This means they are tested by Underwriters Labratories and Certified to meet their exacting standards. It also means that the tests conducted are appropriate for the type of device under test. Only devices that are tested and pass all the tests conducted by UL can apply the UL label.

Dataprobe PDUs are listed under UL 60950-1, and as such are designed for stricter data center environments. Only UL 60950-1 insures that PDUs offer appropriate branch circuit protection.

Other companies use independent labs that test to UL standards. These may or may not be the appropriate safety standards. It is very easy to say tested to UL standards, but that might be for noise emissions or something other than fire safety. Some companies completely forgo safety testing!

Don’t get in the car just to push that big red button. iBoot can automatically restart crashed systems or put the power of remote reboot in your hands, wherever you are.

How Much Can You Save?

Discover your true Cost of Downtime and how fast your ROI on iBoot will be.

Learn More about iBoot-G2 Web Power Switch

Features of iBoot-G2 Web Power Switch

Web Browser Power Control

Clean Web page design for immediate status and power control. Auto detects mobile browsers. No special software required.

Automatic System Restoral

AutoPing detects network or equipment outage and takes immediate action to restore your network or device. Real time scheduling to have a fresh reboot each morning or minimize power waste at night.

Cloud Control

Manage all your iBoots from a single sign-on. Control power worldwide from any web browser, anytime anywhere.

UL Listed

We take your safety seriously. Be confident to pass fire marshal and OSHA inspections.

Dual Password Protected

Separate user and administrator passwords. Deploy iBoots throughout your organization.

IP Addressed, 10/100 Base-T

Use on any Ethernet IP network. Public or private. Supports DHCP and alternate ports for Web Access.

Direct TCP and Software Control

Control iBoot-G2 directly from your software application for the highest degree of power control integration. Simple protocol is freely available. Use iBoot-G2 control program to call power control from any network management system. IPSentry, What’sUp Gold, etc.

110/220 VAC Operation

Auto ranging power input. Deploy iBoot-G2 anywhere in the world. iBoot-G2 uses IEC320 Connectors and includes line and extension cords for North America.

12 Amp Switching

Current for most Servers, Routers, Kiosks, etc. 10 Amps at 220 VAC.

Screenshots of iBoot-G2 Web Power Switch

Enlarge

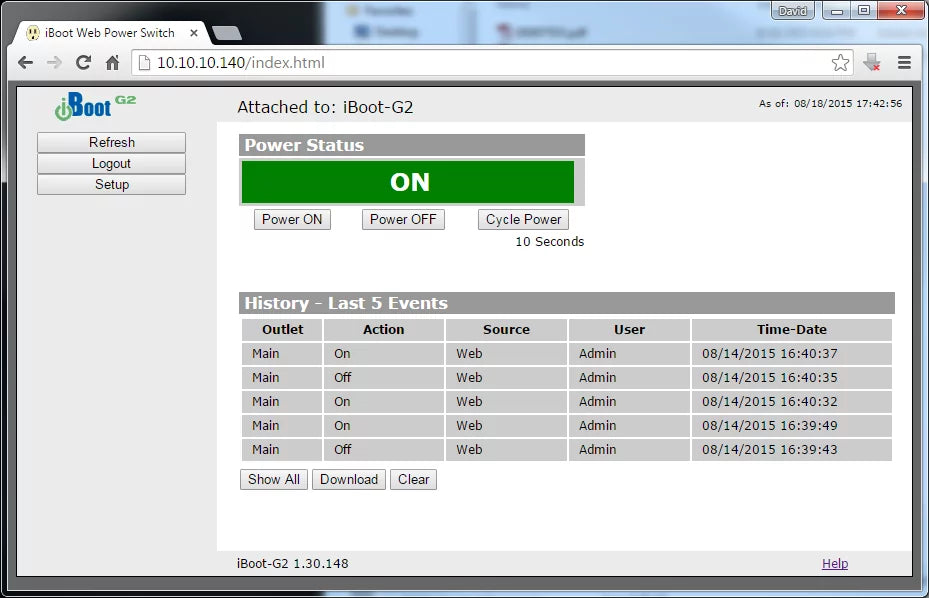

iBoot-G2 Status

Clean web page design makes it easy to see the status and control power to any outlet. History log shows the last 5 events.

Enlarge

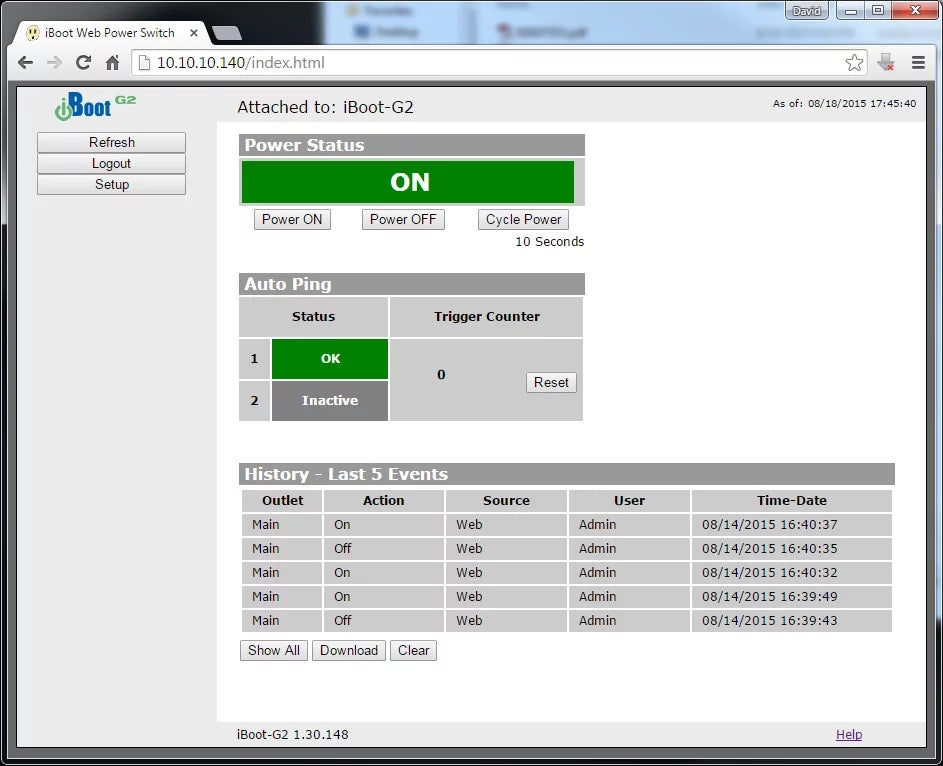

iBoot-G2 Status with AutoPing Enabled

If AutoPing or Heartbeat are enabled, their status is displayed as well. View the number of triggers.

Enlarge

Scheduling Setup

All the setup is handled with easy web forms. Set multiple schedules to have a clean reboot every morning, or shut down at night to reduce power waste.

Enlarge

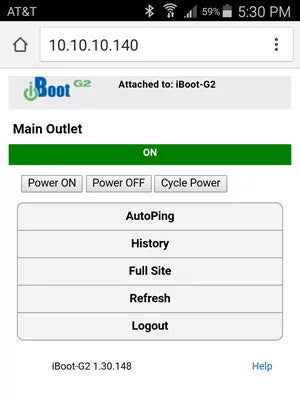

Mobile Pages

Take power control with you wherever you travel. iBoot Automatically detects mobile browsers and provides reduced clutter for easy one thumb access.

Specifications of iBoot-G2 Web Power Switch

Power

105 – 240 VAC Auto Ranging

Power Switching

12 Amps at 105-125 VAC,
10 Amps at 210-240 VAC

Power Connectors

Power Inlet: IEC 320 C13 Plug.
Line cord for North America Included.
16AWGX3C x 6’/2m
Power Out: IEC 320 C14 Receptacle.
Extension Cord for N. America Included.
16AWGX3C x 2’/60cm

Network

10/100base-T, Auto sensing Uplink/Downlink
Cat 5 Cable Included 6’/2m long

Protocols

IP Addressable. DHCP or Static
HTTP Web Server built-in, Port Assignable
Telnet Server built-in, Port Assignable
DxP Messaging Protocol, Port Assignable
Auto-Ping TCP Protocol
Heartbeat Detector Protocol

Browser

Form Processing Browser Required
Mozilla 3.0 or IE 3.0 or greater

Security

Dual Password Protected, User and Admin

Physical

H x W x D: 2.0″ x 3.2″ x 4.2″ (60mm x 82mm x 107mm)
Operating Temperature 0 to 50 Deg. C

Reliability

MTBF 320,000 Hours
Operating Cycles 10,000,000 Mechanical. 100,000 at
Maximum Load

Compliance

UL/cUL UL60950
Listed I.T.E File No. E225914
CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC
RoHS/WEEE
FCC Part 15 Class B
